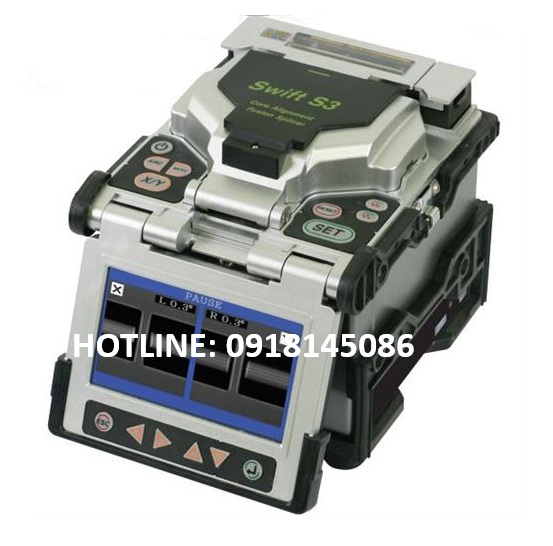

Thông số

Giới thiệu

Căn chỉnh sợi

IPAAS core to core alignment(Image pattern analysis alignment system)

Chứng nhận

SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655) EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657

Số sợi

Single fiber

Kích thước sợi

Cladding diameter: 80 ~ 150㎛, Coating diameter: 100 ~ 1000㎛

Cài đặt sợi

250㎛: 8~16mm, 900㎛: 16mm(Application Holder: 8mm)

Chế độ hàn

Splice mode: 100, Heat mode: 50

Loại suy hao

SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB

Suy hao phản xạ

> 60dB

Thời gian hàn

9 giây

Tính toán suy hao

Có

Thời gian gia nhiệt

30 giây

Applicable protection sleeve

40mm, 60mm(fiber), 28mm or 32mm(connector)

Storage of splice result

The last 9,000 results to be stored in the internal memory.(Image 9,000 results)

Tension test

2N / 4,4N(Option)

Operating condition

Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof

Storage condition

Temperature: -40℃~80℃, Humidity: 0~95%

Dimension

142(W) ｘ163(L) ｘ146(H)mm(Including rubber)

Weight

2.0kg(Including battery 2.5kg)

Viewing method and display

Two CMOS cameras and 4.3-inch color LCD monitor with touch screen

Fiber view and magnification

X or Y view: 300X, X and Y view: 300X, 187X (Zoom 700X)

Power supply

DC Lithium polymer battery(DC 14.8V, 6000mAh), 100~240V AC Adapter

No. of splice cycles with battery

250cycle

Electrode life

More than 3,000 times

Terminals

USB, RCA, External Power(DC 12V Available for car cigar jack)
